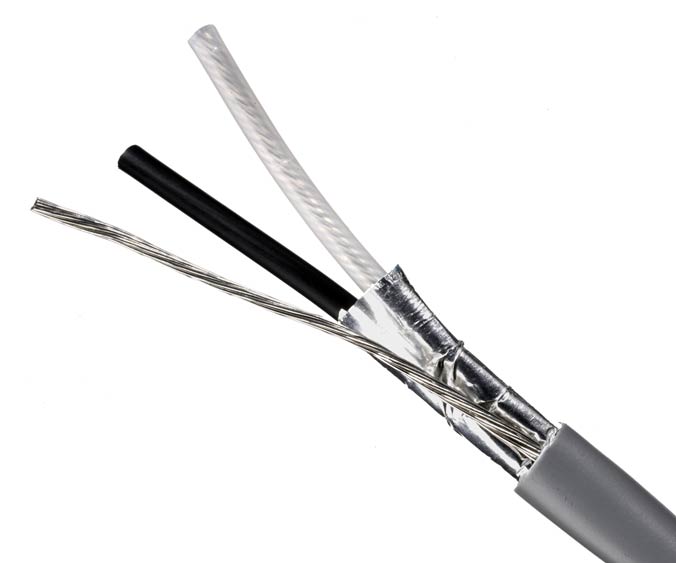

Quabbin Multiconductor Instrumentation, Audio, Control, Broadcast, AWM 20093 – 22 AWG, 2 conductor, shielded, PVC, Chrome Gray

Part Number:
7310
RoHS Compliant:
Yes
Jacket Color: Chrome Gray
Colors shown are a representation only. If you require color matching please contact us direct.

Construction Details

AWG:
22
Solid/Stranded:
Solid
Insulation:
Polypropylene, .009"
Shield:
Yes
Jacket Type:
PVC
Jacket Color:
Chrome Gray
Overall Diameter:
.125"
Other Details:
Drain

Ratings and Approvals

CM
RoHS Compliant:
Yes

Physical Properties

Temp Max.:
60
Voltage Rating Max.:
300
