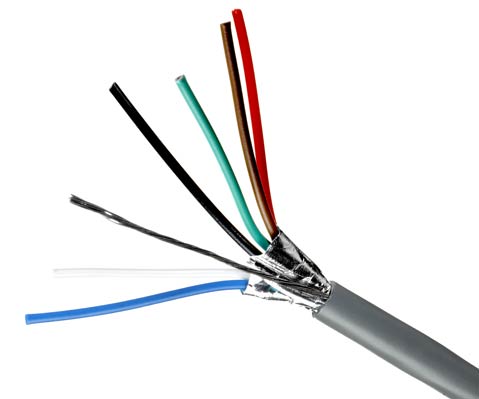

Quabbin Multiconductor Instrumentation, Audio, Control, Broadcast – 18 AWG, 6 conductor, shielded, PVC, Chrome Gray

Part Number:
4177
RoHS Compliant:
Yes
Jacket Color: Chrome Gray
Colors shown are a representation only. If you require color matching please contact us direct.

Construction Details

AWG:
18
Solid/Stranded:
Stranded
Stranded Copper:
16/30
Insulation:
PVC, .010"
Shield:
Yes
Jacket Type:
PVC
Jacket Color:
Chrome Gray
Overall Diameter:
.259"
Other Details:
Drain

Ratings and Approvals

CM
CSA AWM FT4
RoHS Compliant:
Yes

Physical Properties

Temp Max.:
60 & 80
Temp Min.:
-20
Voltage Rating Max.:
300
