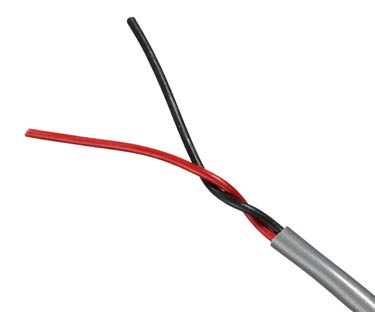

Quabbin Multiconductor Instrumentation, Audio, Control, Broadcast, AWM 2463 – 14 AWG, 2 conductor, unshielded, PVC, Chrome Gray

Part Number:
2115
Belden Equals Part Number:
8473
Carol/General Equals Part Number:
C2409
RoHS Compliant:
Yes
Jacket Color: Chrome Gray
Colors shown are a representation only. If you require color matching please contact us direct.

Construction Details

AWG:
14
Solid/Stranded:
Stranded
Stranded Copper:
19/.0147
Insulation:
PVC, .031"
Shield:
No
Jacket Type:
PVC
Jacket Color:
Chrome Gray
Overall Diameter:
.332"

Ratings and Approvals

CSA AWM FT4
RoHS Compliant:
Yes

Physical Properties

Temp Max.:
80 & 105
Voltage Rating Max.:
600
